breather

BREATHER - FSB / TB CHROME PLATED STEEL CAP - VENTS UNDERNEATH ALTERNATE CAP FINISH BLACK POWDER COATED FILTRATION 40 MICRONS STANDARD / OPTIONAL 10 & 3 MICRONS AIR FLOWS TO 25 CFM ( 750 LPM ) RUGGED CAST ALUMINIUM HOUSING ( FOR BM MODEL ) METAL STRAINER - STANDARD HARDWARE INCLUDES GASKETS & (10-32) SCREWS

BREATHER - TB

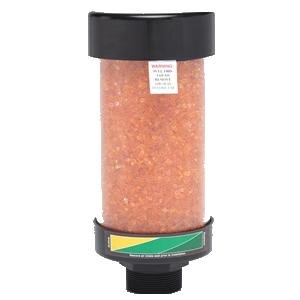

BREATHER DESICCANT FOR REMOVAL OF MOISTURE IN THE AIR FOUR SIZES TO 3000 LPM 2 WAY AIR FLOW SEALED UNIT SILICA GEL CHANGES COLOUR FROM ORANGE TO GREEN OPERATION TEMP ( -20B C TO +80B C ) MULTI LAYER FILTRATION TO 10 MICRONS PLASTIC ABS / ACRYLIC CONSTRUCTION MODEL NO A (M M ) LPM CAPACITY DB* - 0 3 5 89 1000 1500 2400 3000 DB* - 0 5 0 127 DB* - 0 8 0 203 DBT - 1 0 0 254 - DB

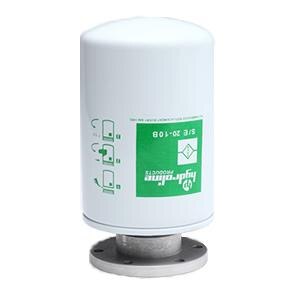

BREATHER - SPIN ON - AB / AB 2 EASILY REPLACEBLE SPIN ON ELEMENT CAST ALUMINIUM HOUSING EXCELLENT ALTERNATIVE TO STANDARD BREATHER MOUNTS ON STANDARD 71.5 MM P.C.D. FLANGE AND SCREW TYPE MOUNTING FILTRATION TO 10 & 25 MICRON LEVEL FOR DUSTY AMBIENT CONDITION e.g. MINING,CONSTRUCTION etc.

BREATHER - ABT / F STURDY ALUMINIUM DIE CAST CONSTRUCTION FILTRATION S.S. 100 MESH STANDARD FOR RUGGED APPLICATION METAL STRAINER STANDARD SUPPLY GASKET AND MOUNTING HARDWARE SUPPLIED OPTIONAL SPLASH GUARD TO MINIMISE SPILLAGE DIP STICK OPTIONAL DIMENSIONS IN MM FOR REFERENCE ONLY AB T - 10 N - * * - * * SERIES T - THREADED F - FLANGE SIZE 10 - 1-1/4" 04 - 1/2" 06 - 3/4" 03 - 3/8" M 18x1.5 INCH THREADS B - BSPP B - BSPP N - NPT N - NPT FEATURE SG - SPLASH GUARD NV - NON VENTING SPECIAL # STRAINER L 6 - 152 M M L 8 - 203 M M FILTER ELEMENT ( SS MESH ) FILTER ELEMENT ( SS MESH ) 65 C * ( 100 ) 71.5 PCD. 85 f 50 f 28 f 48 f 6 HOLES 7 f 3 HOLES 5.5 f ON 41.3 P.C.D. 34.0 48.0 72 f 45 f 72 f 30 16 48 34 ABT-10 ABT-16N ABT-20B VENT CAP DISC FILTER NON VENT CAP 2 - 1/2" BSP HN - HIGH NECK ( STD) 6 HOLES ON 95 P.C.D. TO SUIT M 6 METAL STRAINER 11O f 70 f 150 135 125 f THREADED THREADED THREADED THREADED ABT - 03 / 04 / 06 ABF . 03 / 04 / 06 ABF . 10 ABF . 20 ( SAME AS FSB - 60 - HN ) 36 f 12.0 M18x1.5 Splash guard Splash guard THREADED FLANGE FLANGE FLANGE ABT - M 18 1 R 45 f 16 34 3/8" 1/2” 3/4” 1-1/4" 2” NPT 2-1/2” BSPP Splash guard Splash guard 2 NPT “ Wire Wool Metric 16 - 2” 20 - 2-1/2” ( Female) FEATURE (OMIT IF NOT REQD) (ONLY FOR ABF) OPTIONAL # OPTIONAL # - * * DS - DIP STICK 4” DS - DIP STICK 6” DS - DIP STICK 8” 4 6 8 ( Ref - H3 ) CONSULT FACTORY FOR OEM BULK CUSTOM REQUIREMENT

BREATHER - FSBA / TBA ALUMINIUM DIE CAST CONSTRUCTION - VENTS UNDERNEATH FILTRATION 40 MICRONS STANDARD / OPTIONAL 10 & 3 MICRONS AIR FLOWS TO 25 CFM ( 750 LPM ) RUGGED CAST ALUMINIUM HOUSING ( FOR BM MODEL - OPTIONAL) METAL STRAINER - 4 “ STANDARD ( OPTIONAL 6” & 8” ) HARDWARE INCLUDES GASKETS & (10-32) SCREWS

BREATHER - ABP STURDY CONSTRUCTION ( ABS ) VENTS UNDERNEATH SPLASH GUARD STANDARD FILTRATION 40 MICRONS SUITABLE FOR MINIATURE POWER PACKS DIP STICK OPTIONAL CONSULT FACTORY FOR OEM BULK CUSTOM REQUIREMENT

BREATHER - MBT / F PLASTIC BREATHER - FOR MOBILE APPLICATION FILTRATION 10 MICRONS STANDARD AIR FLOWS TO 25 CFM ( 750 LPM ) RUGGED NYLON HOUSING FILLER STRAINER ( MBF MODEL ) HARDWARE INCLUDES GASKET SPLASH GUARD FEATURE STANDARD
