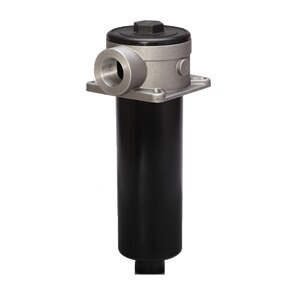

FILTER - TANK IMMERSED - RPF
In stock
Description
FILTER - TANK IMMERSED - RPF
DIRECT TANK MOUNTING
ALUMINIUM / PLASTIC CONSTRUCTION
3 SIZES FLOW TO 150 LPM
BY PASS STANDARD 1 BAR
SUITABLE FOR MINERAL / PETROLEUM BASED OILS
DIMENSIONS IN MM FOR REFERENCE ONLY
MODEL NO THDS A B C D E G H J K
Tank Cut Out
RPF - 06 3/4” BSPP 307.00 230.00 350.00 24.00 30.00 80.00 38.00 66.00 80.00
80.00
80.00
30.00 80.00 38.00 66.00
30.00 80.00 38.00 66.00
24.00
24.00
307.00 230.00 350.00
390.00 311.00 405.00
RPF - 08 1” BSPP
RPF - 10 1- 1/4" BSPP
+2.8
+2.8
+2.8
PRESSURE - MAX. 7 BAR / TEST 12 BAR / B. URST 16 BAR
MAX. TEMP 80°C
