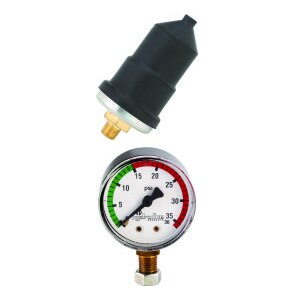

GAUGE INDICATORS - GR / ER

GAUGE INDICATORS - GR / ER

PRESSURE DROP Vs FLOW DATA IS FOR COMPLETE FILTER ASSEMBLY WITH CLEAN ELEMENT

WE RECOMMEND THE RETURN FILTERS ARE SIZED AT MAX. OF 0.35 BAR ( 5PSI ) CLEAN ELEMENT

PRESSURE DROP IN ORDER TO OBTAIN SATISFACTORY ELEMENT SERVICE LIFE.

WHEN SIZING A FILTER, APART FROM FLOW, THE RATE OF FLOW ARISING OUT OF DIFFERENTIAL

INTERNAL FILTER BY PASS PROTECTS ELEMENT COLLAPSE UNDER CLOGGED CONDITION

FILTER LIFE WILL BE INCREASED IF THE LINE SURGE CONDITION CAN BE MINIMISED

SUCTION FILTERS ARE SIZED AT A MAX OF 0. 0 3 BAR ( 0.5 PSI ) CLEAN ELEMENT PRESSURE DROP.

RECOMMENDED OPERATING PRESSURE DROP SHOULD NOT EXCEED 50% OF BY PASS VALVE

CRACK PRESSURE. BUT MAX. INLET VACUUM FOR SUCTION APPLICATIONS SHOULD COMPLY WITH

.

PISTON DIA SHOULD BE TAKEN INTO ACCOUNT.

PUMP MANUFACTURER'S RECOMMENDATION
