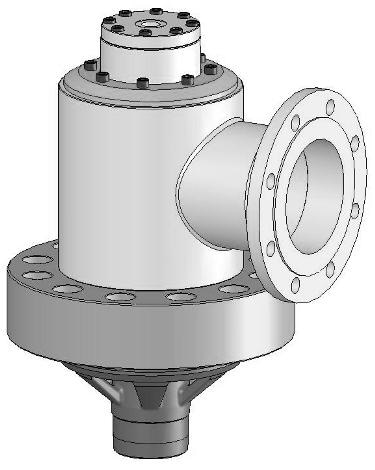

Prefill valve ( PV 100 - 200 ) - 21 Series The Prefill Exhaust Valve (PV) is a hydraulic-pilot operated check valve with seat type construction. It allows free flow from port A to port B. Flow from port B to port A can be enabled by applying pilot pressure to it's port X. The decompression feature enables the valve to open in two stages progressively, allowing smooth and rapid exhaust of the compressed oil. Opening and closing time of the valve can be influenced by providing Throttle-Check Valves in the X port line. Flanged port A of the valve housing can be rotated around vertical axis through 360° to facilitate access to flange fixing bolts and flange orientation Features Integrated Seat provides high rigidity, high fatigue resistance and less deflection of the flange. Encapsulated O-ring allows easy of assembly and prevents o-ring damage during assembly. Simplified Cavity machining Larger suction flange to reduce pressure drop in the suction line and consequently increase flow handling capability Improved Pilot cylinder sealing to minimize pilot leakage and reduce frictional loss during operation.
