directional control valve

Manifolds For Directional Control Valves - ( 1P 02155* ) Designed specially for multistation directional control valves, CETOP- RP 35 H size 3. Number of stations vary from minimum 2 to maximum 10.

Solenoid Operated Directional Control Valve (CETOP 05) - DE10-LP (210 bar, 100 lpm) -- (Discontinued) 4-port, spool type, solenoid operated, directional control valves with wet armature AC or DC coils and wide variety of spool types with spring centered and spring-offset arrangements. Five chamber body and spool design to facilitate high flow. Conforms to ISO4401-5, NFPA T3.5.1M R1 and ANSI B93-7 D 05 interface. Available in 52 standard, interchangeable spool configurations. Removable wet-armature AC and DC solenoids for quick replacement and conversions. Moulded solenoid coils to protect against moisture and ingress of dust. Individual solenoid plug-in connectors with indicator lights to ISO 4400 and DIN 43650. Special R-rings for high extrusion resistance. Increased stability under high dynamic condition. Override for operation of valve without electrical power. Note on solenoid identification : Solenoid "a" is close to Port "A" and Solenoid "b" is close to Port "B" for a direct operated valve.

Lever Operated Directional Control Valve - DL20 -- (Discontinued) Completely encapsulated control mechanism for protection against dirt. Five chamber design. Wide variety of spools available both in subplate and threaded model.

Solenoid Pilot Operated Directional Control Valve - DEP 20 -- (Discontinued) Available as spring centered, spring offset Valve mounting interface conforms to International and National standards. Minimum pilot pressure is 5 bar.

Pilot Operated Directional Control Valve - DP 20 -- (Discontinued) Pilot operated directional control valves are hydraulically operated spool valves. They control the start, stop & direction of fluid flow. Available in 19 spool configurations. Available as spring centered and spring offset. Mounts on standard ISO 4401, IS10187.

Lever Operated Directional Control Valve (CETOP 03) - DL 06 Completely encapsulated mechanism for protection against dirt. Five chamber design for better reduction in dynamic forces and longer valve life. Available as spring centered, spring off-set or detented model. Operating head can be rotated by 90° x 4 around spool axis for flexibility in mounting. Valve mounting interface conforms to ISO 4401-03-02. Five chamber body and spool design provides low-pressure drop, with maximum performance. Balanced spool design ensures proper shifting force for maximum reliability and long life. All spools and bodies are interchangable, simplifying maintenance.

Solenoid Operated Directional Control Valve (CETOP 05) - DE 10 (315 bar, 120 lpm) 4-port, spool type, solenoid operated, directional control valves with wet armature AC or DC coils and wide variety of spool types with spring centered and spring-offset arrangements. Five chamber body and spool design to facilitate high flow. Conforms to ISO4401-5, NFPA T3.5.1M R1 and ANSI B93-7 D 05 interface. Available in 52 standard, interchangeable spool configurations. Removable wet-armature AC and DC solenoids for quick replacement and conversions. Moulded solenoid coils to protect against moisture and ingress of dust. Individual solenoid plug-in connectors with indicator lights to ISO 4400 and DIN 43650. Special R-rings for high extrusion resistance. Increased stability under high dynamic condition. Override for operation of valve without electrical power. Note on solenoid identification : Solenoid "a" is close to Port "A" and Solenoid "b" is close to Port "B" for a direct operated valve.

Solenoid Operated Directional Control Valve (CETOP 03) - DE 06 (315 bar, 63 lpm) Direct solenoid operated, spool type, mounting on ISO 4401-03-02. Five chamber body and spool design provides low-pressure drop, with maximum performance. Balanced spool design ensures proper shifting force for maximum reliability and long life. All spools and bodies are interchangable, simplifying maintenance. Wet pin DC solenoids ensure better heat dissipation, quitter operation, there by increasing solenoid life. Moulded solenoid coils eliminate moisture problems and ingress of dust. Plug-in-coils for ease of maintenance. Indicator lights are a standard option.

Pilot Operated Directional Control Valve (New Series) - DP 10 Pilot operated directional control valves are hydraulically operated spool valves. They control the start, stop & direction of fluid flow. Available in 19 spool configurations. Available as spring centered and spring offset. Mounts on standard ISO 4401, IS10187.

Lever Operated Directional Control Valve (Old Series) - DL10 ( Series 10 ) Completely encapsulated control mechanism for protection against dirt. Five chamber design. Flexibility in rotating the operating mechanism by 90° x 4. Wide variety of spools available in subplate model only.

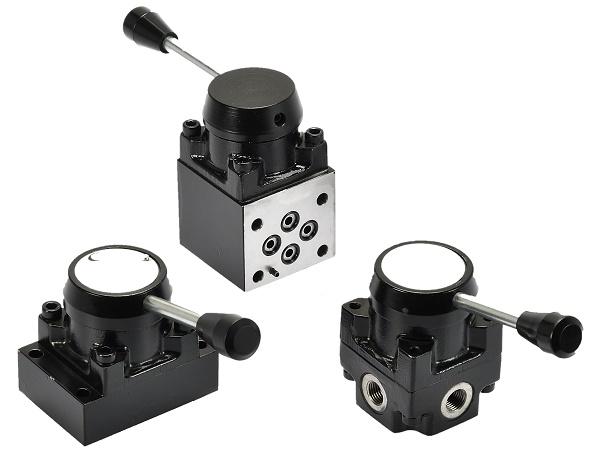

Rotary Directional Control Valve - 4RDL02 A lever operated rotary type directional control valve is generally used for high pressure applications at low flow. These valves are used where leak-free closure is required.

Hand Pumps with Rotary Directional Control Valves - HP*-D Hand pump model HP*-D are compact heavy duty pumps designed for industrial applications like operating small presses, fixtures as well as providing source of oil for hydraulically operated emergency equipments. These hand pumps are equipped with integral Rotary Directional Control Valve with two outlet ports for switching of the flow between the two sides of a double acting cylinder. The Rotary valve has pressure holding ability.
