TANK MOUNTED STRAINER - TMH
TANK MOUNTED REUSABLE STRAINER
SIDE WALL OR TANK TOP MOUNTING
FLOWS TO 40 GPM ( 160 LPM )
STAINLESS STEEL PLEATED MEDIA
100 MESH ( 149 MICRON ) STANDARD
STEEL HOSE BARB FITTING WITH O Ring

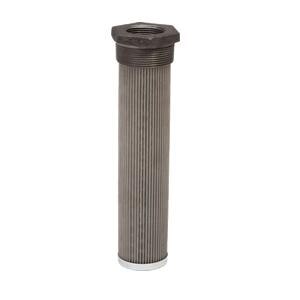

TANK MOUNTED STRAINER - TMS
TANK MOUNTED REUSABLE STRAINER
SIDE WALL OR TANK TOP MOUNTING
FLOWS TO 200 GPM ( 800 LPM )
STAINLESS STEEL PLEATED MEDIA
100 MESH ( 149 MICRON ) STANDARD
M.S. / C.I. BUSHING

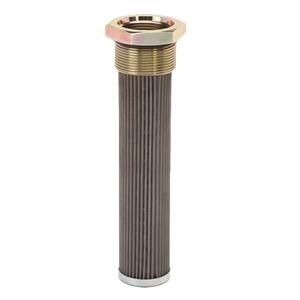

TANK MOUNTED STRAINER - TMSU
TANK MOUNTED REUSABLE STRAINER
SIDE WALL OR TANK TOP MOUNTING
FLOWS TO 40 GPM (160 LPM )
STAINLESS STEEL PLEATED MEDIA
100 MESH ( 149 MICRON ) STANDARD
STEEL BUSHING WITH O’ Ring

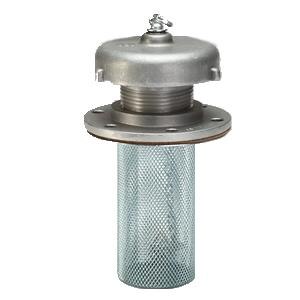

BREATHER - ABT / F
STURDY ALUMINIUM DIE CAST CONSTRUCTION
FILTRATION S.S. 100 MESH STANDARD
FOR RUGGED APPLICATION
METAL STRAINER STANDARD SUPPLY
GASKET AND MOUNTING HARDWARE SUPPLIED
OPTIONAL SPLASH GUARD TO MINIMISE SPILLAGE
DIP STICK OPTIONAL
DIMENSIONS IN MM FOR REFERENCE ONLY
AB T - 10 N - * * - * *
SERIES
T - THREADED
F - FLANGE
SIZE
10 - 1-1/4"
04 - 1/2"
06 - 3/4"
03 - 3/8"
M 18x1.5
INCH
THREADS
B - BSPP
B - BSPP
N - NPT
N - NPT
FEATURE
SG - SPLASH GUARD
NV - NON VENTING
SPECIAL #
STRAINER
L 6 - 152 M M
L 8 - 203 M M
FILTER ELEMENT
( SS MESH )
FILTER ELEMENT
( SS MESH )
65 C * ( 100 )
71.5 PCD.
85 f
50 f
28 f 48 f
6 HOLES 7 f
3 HOLES 5.5 f
ON 41.3 P.C.D.
34.0 48.0
72 f
45 f
72 f
30
16 48
34
ABT-10 ABT-16N ABT-20B
VENT CAP
DISC FILTER
NON VENT CAP
2 - 1/2" BSP
HN - HIGH NECK ( STD)
6 HOLES ON 95 P.C.D.
TO SUIT M 6
METAL STRAINER
11O f
70 f
150
135
125 f
THREADED THREADED THREADED THREADED
ABT - 03 / 04 / 06
ABF . 03 / 04 / 06 ABF . 10
ABF . 20
( SAME AS FSB - 60 - HN )
36 f
12.0
M18x1.5 Splash guard Splash guard
THREADED
FLANGE FLANGE
FLANGE
ABT - M 18
1
R
45 f
16
34
3/8" 1/2” 3/4” 1-1/4" 2” NPT 2-1/2” BSPP
Splash guard
Splash guard
2 NPT
“
Wire Wool
Metric
16 - 2”
20 - 2-1/2”
( Female)
FEATURE
(OMIT IF NOT REQD) (ONLY FOR ABF)
OPTIONAL # OPTIONAL #
- * *
DS - DIP STICK 4”
DS - DIP STICK 6”
DS - DIP STICK 8”
4
6
8
( Ref - H3 )
CONSULT FACTORY FOR OEM BULK CUSTOM REQUIREMENT

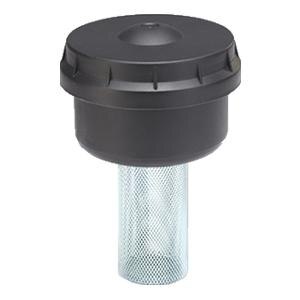

BREATHER - MBT / F
PLASTIC BREATHER - FOR MOBILE APPLICATION
FILTRATION 10 MICRONS STANDARD
AIR FLOWS TO 25 CFM ( 750 LPM )
RUGGED NYLON HOUSING
FILLER STRAINER ( MBF MODEL )
HARDWARE INCLUDES GASKET
SPLASH GUARD FEATURE STANDARD

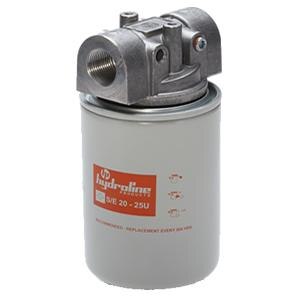

FILTER - INLINE SPIN ON - IFR 2
DISPOSABLE SPIN ON
DIE CAST ALUMINIUM HEAD
9 SIZES FLOWS TO 400 LPM
MAX. PRESSURE 10 BAR / TEST 15 BAR / BURST 20 BAR
MAX. TEMP. 80 ° C.
BY PASS STANDARD 1 BAR ( SUCTION 0.2 BAR )
FOR USE WITH MINERAL / PETROLEUM BASED OILS

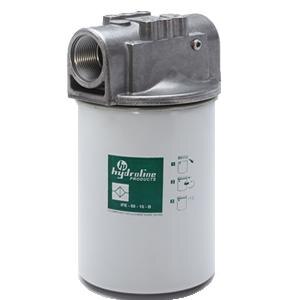

FILTER - INLINE SPIN ON - IFR3
DISPOSABLE SPIN ON ELEMENT
DIE CAST ALUMINIUM HEAD
5 SIZES FLOWS TO 200 LPM
MAX. PRESSURE 10 BAR / TEST 15 BAR / BURST 20 BAR
DIMENSIONS IN MM FOR REFERENCE ONLY
MODEL CODE L D H X
MOUNTING HOLES GAUGE PORT WT
NOS SIZE NOS NPT KGS
I F *3.10*-50
I F *3.10*-65
I F *3.06 *-10
I F *3.06 *-20
I F *3.06 *-30
95
95
95
140
140
188
188
188
93
93
93
250
250
129
129
6 OFF
6 OFF
2 OFF
2 OFF
2 OFF
38.1
38.1
38.1
47.6
47.6
2.3
2.5
0.8
1.0
1.2
1 / 8"
1 / 8"
1 / 8"
1 / 8"
1 / 8"
2 0FF
2 0FF
2 0FF
2 0FF
2 0FF
DIMENSIONS IN MM FOR REFERENCE ONLY
06 10
* Refer Model Code Assembly
1
M 8 X 1.25
5/16”-18UNC
1/4”-20UNC
(Std )
(Std )
M 6 X 1.0
MAX. TEMP. 80 ° C.
BY PASS STANDARD 1 BAR ( SUCTION 0.2 BAR )
FOR USE WITH MINERAL / PETROLEUM BASED OILS

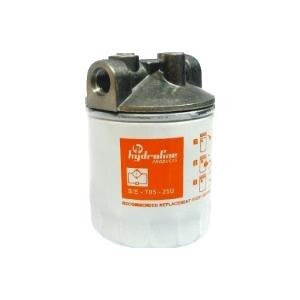

FILTER - INLINE SPIN ON - IFR 4
DISPOSABLE SPIN ON ELEMENT
DIE CAST ALUMINIUM HEAD
5 SIZES FLOWS TO 70 LPM( RETURN ) / 20 LPM ( SUCTION )
MAX. PRESSURE 10 BAR / TEST 15 BAR / BURST 20 BAR
MAX. TEMP. 80 ° C.
BY PASS STANDARD 1 BAR ( SUCTION 0.2 BAR )
FOR USE WITH MINERAL / PETROLEUM BASED OILS
