Home Products Monoblock valve for high flow applications-SD18
Monoblock valve for
Monoblock valve for
COD not available
Hydraulic Monoblock Valves

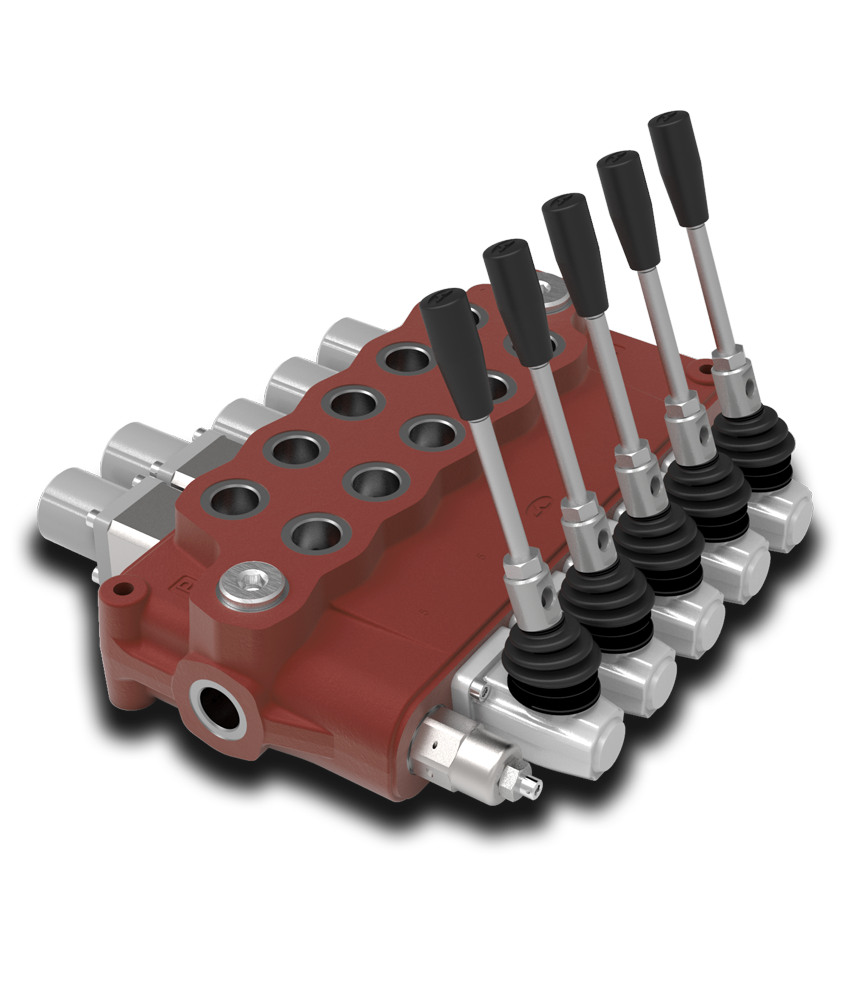

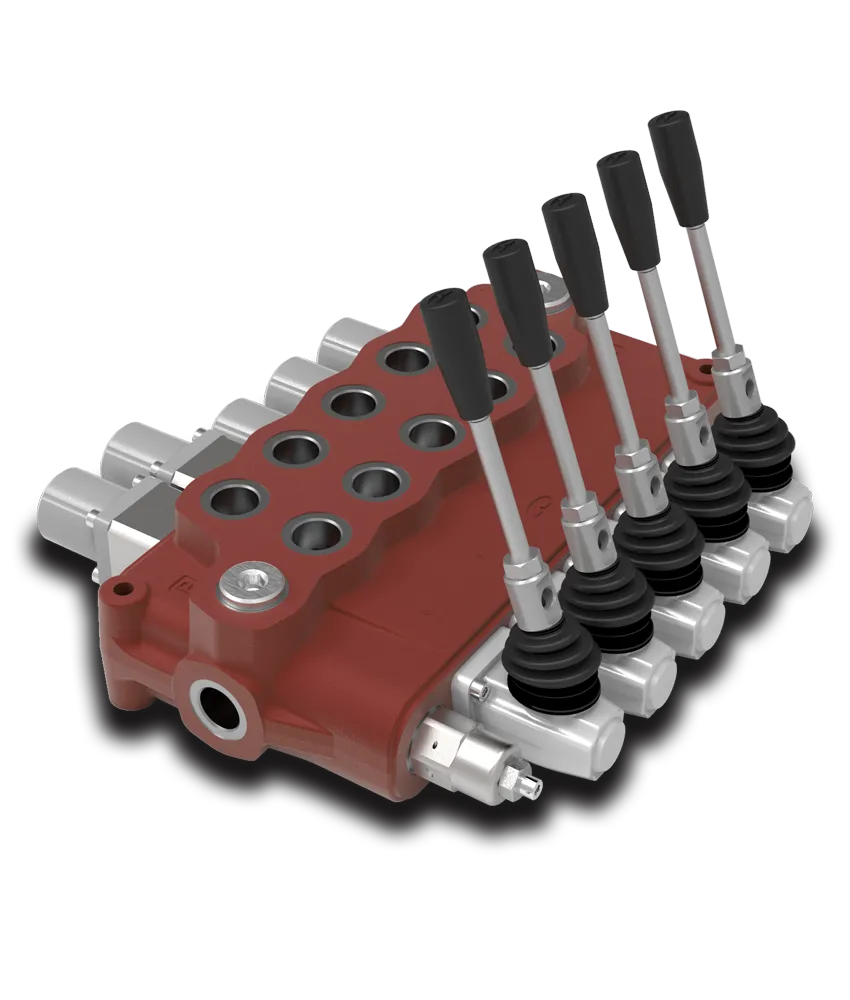

Monoblock valve for high flow applications-SD18

Share with
Share this on :

Description

Product details

Monoblock valve for high flow applications Thanks to its robust construction, the SD18 valve is used in agricultural machinery to control motors for large Boom Mowers, and in Industrial Vehicles such as Waste Compactors and drain systems. - Single check valve - Manual, hydraulic, electro-hydraulic and pneumatic controls. Nominal Flow Rating l/min - (US gpm): 160 (42) Max. Pressure bar - (psi): 250 (3600) Number of Sections: 6 Pitch mm (in): 53 (2,09)

Keywords

  • Filter tags

Other Products

Related Products

# Fixed Displacement Bent Axis piston pump # Size 10 to 180 cc # Series 61 # Nominal pressure 400 bar 1. Fixed displacement pump A2FO of axial piston bent axis design is made suitable for hydro static drives in open circuits. 2. Suitable for use in mobile or industrial application . 3. Output flow is proportional to drive speed and displacement. 4. The drive shaft bearings are designed to give the service life expect in these areas of operation careful selection of the displacements offered. 5. Permit sizes to be matched to practically every application.
View Details
THM – A2FO – Fixed Displacement Piston Pump
STF – ITMH – Radial Piston Motor ITMH series-01,02,03,06,08,11,16. Max. Pressure upto 210 bar. Max Torque upto 180 to 6434. ITHM high pressure high speed hydraulic motor is an upgrade of the ITM series, its internal integrated with multiple valve group, the critical friction pair is redesigned, these improved the comprehensive performance and reliability of the motor remarkably.
View Details
STF – ITMH – Radial Piston Motor
STF – ITM Series – Radial Piston Motors ITM series-01,02,03,06,08,11,16,31,70,100. Max. Pressure up to 220 bar Rated Torque range 150 to 19843 N.m Main Characteristics: Low noise due to its crankshaft &con-rod structure and cylinder & piston framework of low vibration frequency. Steady performance at low speed; high starting torque. Good reliability and less leakage due to the flat compensation distributor. Enable reversible rotation and certain external radial & axial force on output shaft.
View Details
STF – ITM Series – Radial Piston Motors
