SD8 - DLS8

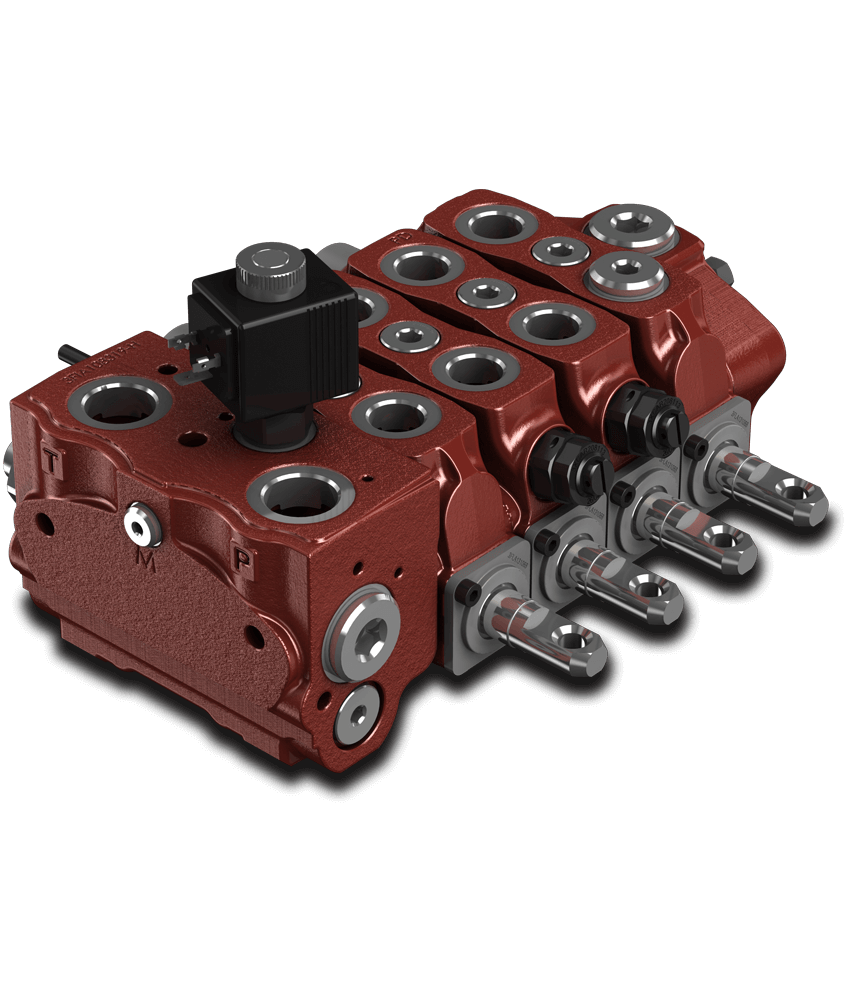

SD8 - DLS8-Compact, versatile and flexible sectional valve

The technical features, flow rate and pressure limit make the SD8 valve ideal for different applications, but particularly for Cranes, Telescopic boom fork lifts, Back-hoe Excavators and Compactors. The DLS8 Load Sensing version is used with a manual control kit for vertical and horizontal drilling rigs and for Front-loaders.

- Fitted with a main pressure relief valve and a load check valve on every working section

- Available with parallel, tandem or series circuit

- Optional carry-over port

- A wide range of ports and circuit valves

- Intermediate sections for several types of circuit

- Manual, pneumatic, hydraulic, electro-hydraulic and remote controls with flexible cable spool control kits.

Nominal Flow Rating l/min - (US gpm): SD8: 80 (21): DLS8: 100 (26)

Max. Pressure bar - (psi): 315 (4600)

Number of Sections: SD8: 12

Pitch mm (in): 41 (1,61)
