STF Radial Piston Motors

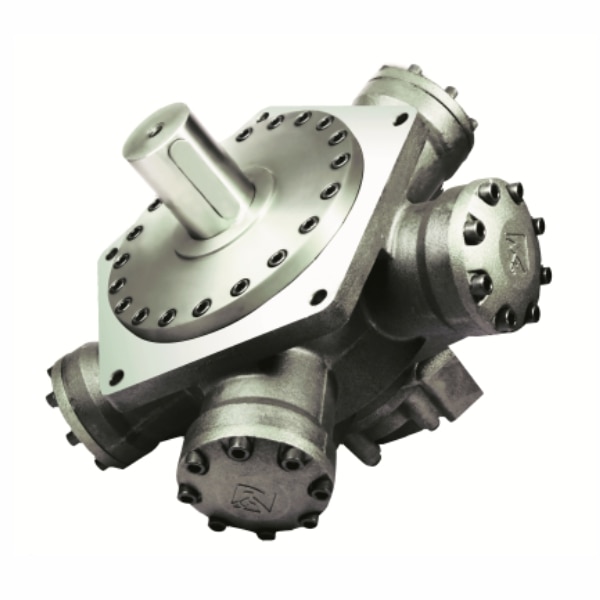

STF – ITMS Series – Radial Piston Motors

Contact Us

Phone Number

08048045949

Please keep 0 before dialling the number.

Email Address caacbe@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Address No. 218, Ranga Konar Street, Kattoor, Coimbatore - 641 009, Tamil Nadu, India

Coimbatore, India, 641009

Description

STF – ITMS Series – Radial Piston Motors ITMS series-09,18,30 Max. Pressure up to 220 bar Rated Torque range 1983 to 8930 N.m Main Characteristics: Same structure as STF series as removed piston sleeve, integrated body case and piston cylinder hole, featured with high power-mass ratio and technical performance. Applied hydrostatic oil-film modality between ball-socket of piston and ball head of con-rod to heighten its contact pressure ratio, working pressure and mechanical efficiency. Higher anti-impact and load performance due to its enhanced roller bearing. Longer service life due to special materials and advanced heat treatment in main transmitting parts. Same installation data as ITM series, and ideal replacement of ITM series in higher pressure & performance application.

Keywords

Other Products

view all

6814772a5d263414004dd4a4 Card 2

product image
Axial Piston Pump , fixed displacement axial piston pump

THM – A2FO – Fixed Displacement Piston Pump

# Fixed Displacement Bent Axis piston pump # Size 10 to 180 cc # Series 61 # Nominal pressure 400 bar 1. Fixed displacement pump A2FO of axial piston bent axis design is made suitable for hydro static drives in open circuits. 2. Suitable for use in mobile or industrial application . 3. Output flow is proportional to drive speed and displacement. 4. The drive shaft bearings are designed to give the service life expect in these areas of operation careful selection of the displacements offered. 5. Permit sizes to be matched to practically every application.

6814772a5d263414004dd4a4 Card 2

product image
STF Radial Piston Motors

STF – ITMH – Radial Piston Motor

STF – ITMH – Radial Piston Motor ITMH series-01,02,03,06,08,11,16. Max. Pressure upto 210 bar. Max Torque upto 180 to 6434. ITHM high pressure high speed hydraulic motor is an upgrade of the ITM series, its internal integrated with multiple valve group, the critical friction pair is redesigned, these improved the comprehensive performance and reliability of the motor remarkably.

6814772a5d263414004dd4a4 Card 2

product image
STF Radial Piston Motors

STF – ITM Series – Radial Piston Motors

STF – ITM Series – Radial Piston Motors ITM series-01,02,03,06,08,11,16,31,70,100. Max. Pressure up to 220 bar Rated Torque range 150 to 19843 N.m Main Characteristics: Low noise due to its crankshaft &con-rod structure and cylinder & piston framework of low vibration frequency. Steady performance at low speed; high starting torque. Good reliability and less leakage due to the flat compensation distributor. Enable reversible rotation and certain external radial & axial force on output shaft.
