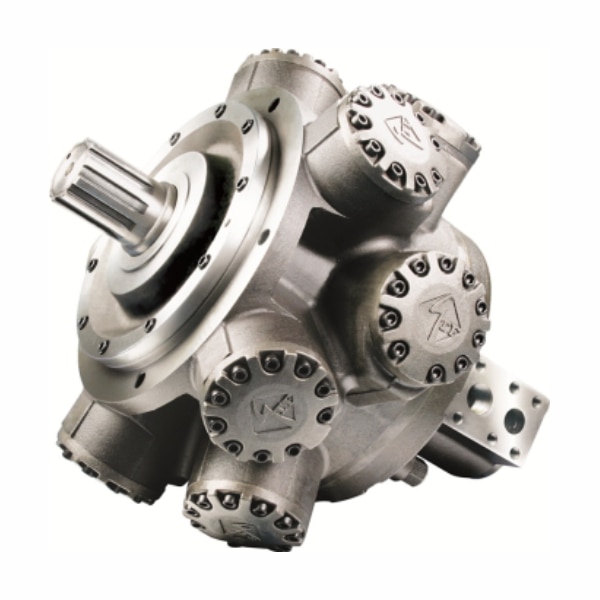

STF – STFC Series – Radial Piston Motors
STFC series-080,100,125,200,270,325,400
Max. Pressure up to 290 bar
Rated Torque range 3324 to 22404 N.m
Main Chratcteristics:
The hydrostatic balance built between the piston, con-rod and eccentric sets reduces the friction between con rod and eccentric sets, and also reduce the lateral friction on pistons, and contact pressure on ball the socket, thus to reduce the friction loss while on load. With above STFC series motor features with high mechanical efficiency and starting torque (The Mechanical efficiency while starring is upto 90%)
Hydrostatic balance shaft distributor prevent the shaft from tilting. thus to get excellent sealing, less leakage, and continuous running under high pressure (Max. pressure reach to 29Mpa)
Special materials and structure of seals reduce the leakage and improve the volumetric efficiency.
Special materials and advanced treatment on main driving parts prolong the overall service life.
Ideal replacement of STAFFA motor with interchangeable mounting and performance.
STFC series motor is widely applied in all kinds of hydraulic transmission systems. such as plastic injection molding machines, deck machinery, construction machinery, hoist, transport vehicle, heavy metallurgical machinery, petroleum & mining machinery, light industrial equipment, drilling machinery and so on.
# Fixed Displacement Bent Axis piston pump
# Size 10 to 180 cc
# Series 61
# Nominal pressure 400 bar
1. Fixed displacement pump A2FO of axial piston bent axis design is made suitable for hydro static drives in open circuits.
2. Suitable for use in mobile or industrial application .
3. Output flow is proportional to drive speed and displacement.
4. The drive shaft bearings are designed to give the service life expect in these areas of operation careful selection of the displacements offered.
5. Permit sizes to be matched to practically every application.
STF – ITMH – Radial Piston Motor
ITMH series-01,02,03,06,08,11,16.
Max. Pressure upto 210 bar.
Max Torque upto 180 to 6434.
ITHM high pressure high speed hydraulic motor is an upgrade of the ITM series, its internal integrated with multiple valve group, the critical friction pair is redesigned, these improved the comprehensive performance and reliability of the motor remarkably.
STF – ITM Series – Radial Piston Motors
ITM series-01,02,03,06,08,11,16,31,70,100.
Max. Pressure up to 220 bar
Rated Torque range 150 to 19843 N.m
Main Characteristics:
Low noise due to its crankshaft &con-rod structure and cylinder & piston framework of low vibration frequency.
Steady performance at low speed; high starting torque.
Good reliability and less leakage due to the flat compensation distributor.
Enable reversible rotation and certain external radial & axial force on output shaft.
STF Radial Piston Motors
